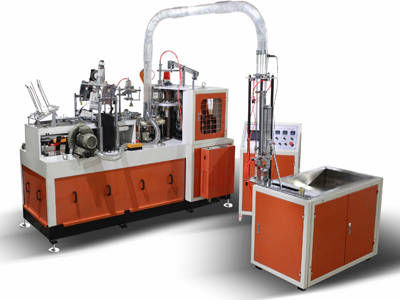

ZSZB-D OTOMATİK KAĞIT BARDAK YAPMA MAKİNASI

ModelZSZB-D
Cup size/ BardakEbatı:4-12oz (different size mold exchanged)
Suitable Paper Material/ UygunKağıtMateryali150-380g/m2(single or double PE-coated paper/ tekveyaçifttarafı PE kaplıkağıt)
Capacity/ Kapasite:65-80pcs/min
Power source/ GüçKaynağı220V、380V 50HZ
Weight/ Ağırlık:2800KG
Total Power/ ToplamGüç11KW
Package size/ MakinaBoyutu:2800 x 1600 x 1800 mm
Working Air Source/ ÇalışmaHavaBasıncı:Air pressure 0.4Mpa;Air out-put:0.6m3/min


A:top diameter:
Min 45mm---Max 90mm
B:bottom diameter:
Min 35mm---Max 75mm
C:total height:
Min 30mm---Max 115mm
D:bottom knurling depth:
Min 4mm---Max 12mm
E:rim diameter:
    Usually Φ2.5---Φ3
